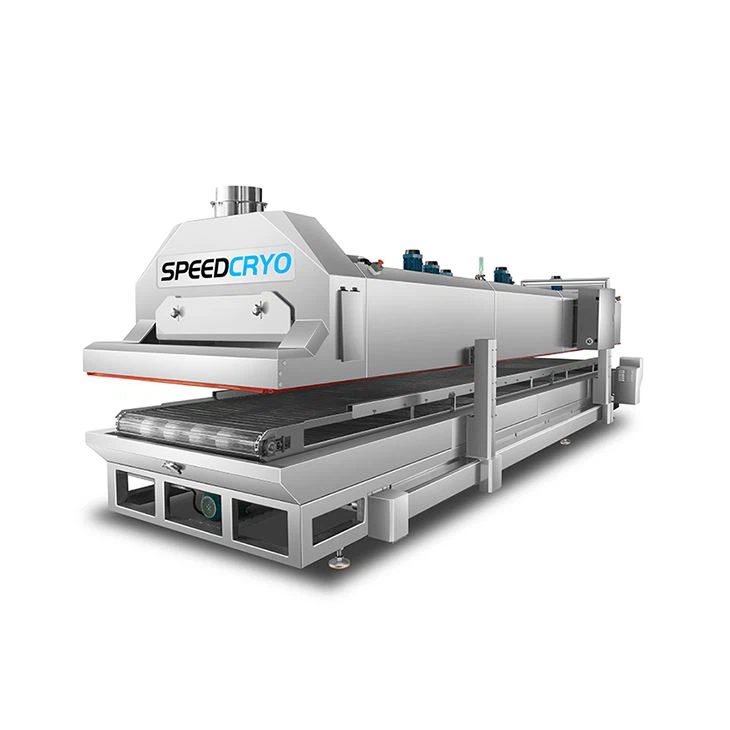

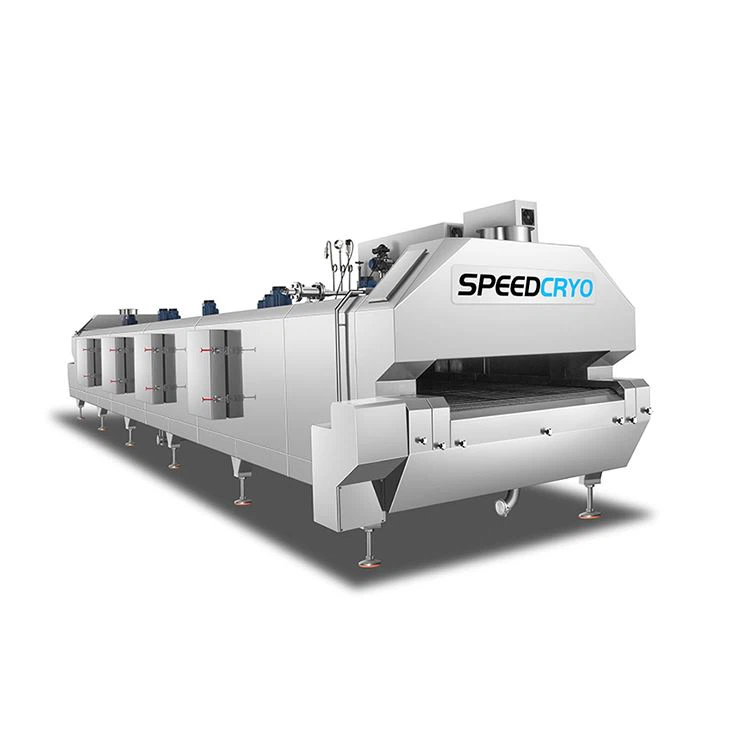

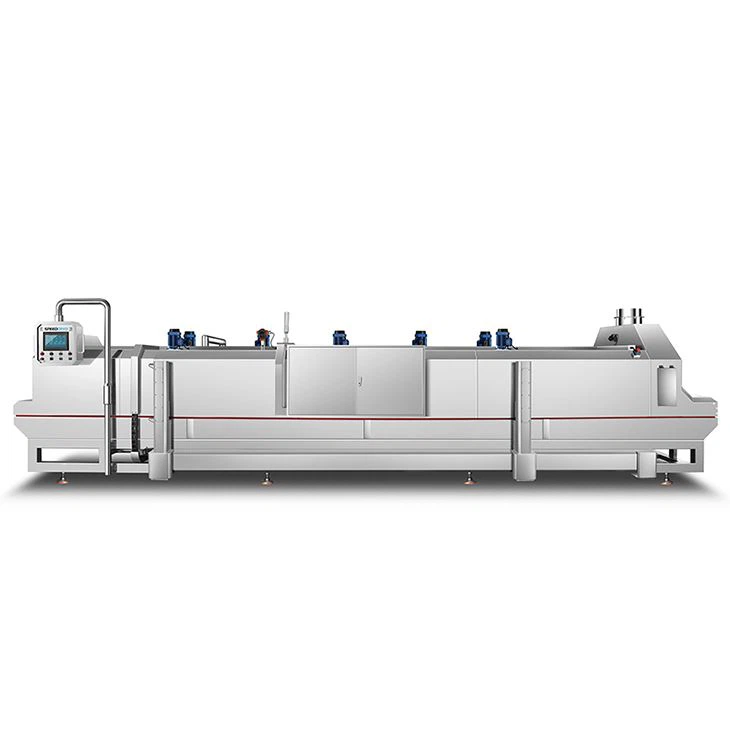

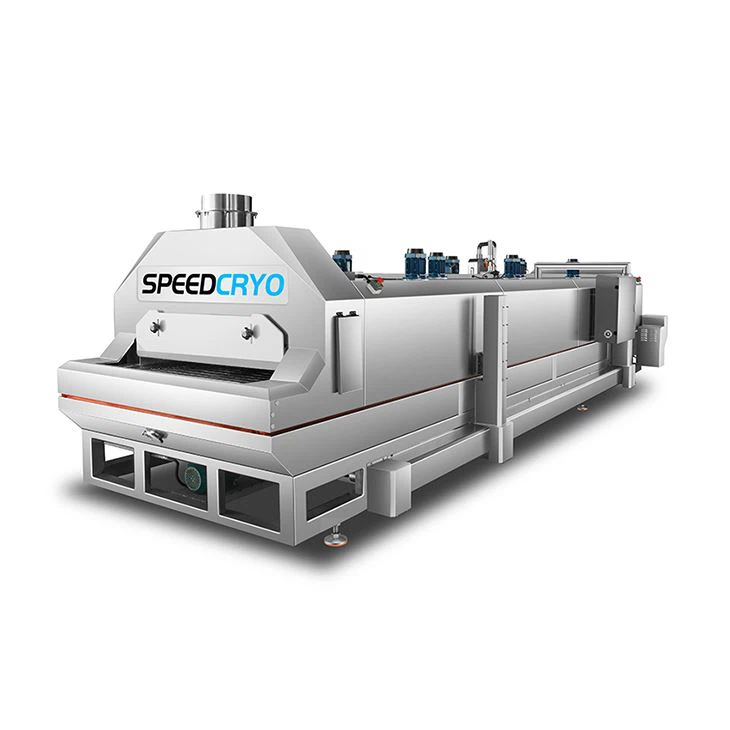

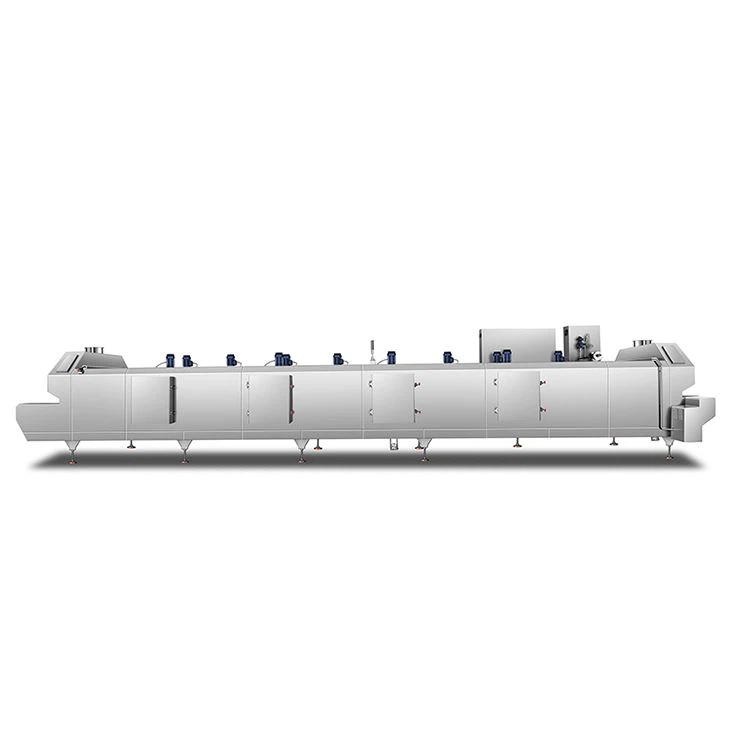

1. Product Introduction
Liquid nitrogen instant quick freezer using the latest freezing technology – liquid nitrogen as refrigerant, which is totally ton-toxic, and it could be used directly on the food surface.
Due to ultra low temperature (0℃~ -196℃ adjustable), and extremely fast freezing time 5 ~ 20 minutes, it could be widely used for different kind of food freezing.
2. Product Parameter
| Model: | JSSD-0912 Liquid Nitrogen Instant Quick Freezer | ||
|---|---|---|---|
| Outer Size: | 9.14*2.15*1.90(m) | Conveyor Size: | 9*1.2(m) |
| Inlet Length: | 0.96(m) | Outlet Length: | 0.5(m) |
| Inlet Height: | 50 ~150mm Adjustable | Freezing Capacity | 700 ~ 1000kgs/h |
| Weight: | About 4600 kgs | Voltage: | 380V |
| Material: | SUS 304 Stainless Steel | Power: | 11 KW |
3. Products feature and application:
1) Extremely low temperature and quick-freeze
2) Wide application
3) High-quality freshness preservation
4) Easy application and simple maintenance
5) Lower input cost and maintenance cost
6) Space-saving and movable
7) Safety and environmental
As the working temperature and freezing time is (0 ~ - 196℃) adjustable, we widely use liquid nitrogen blast freezer for chicken, seafood, fruits and baked food freezing.
4. Details information:
We design liquid nitrogen blast freezer tunnel with liftable function, which is easier for client installing and cleaning:
- PLC Touch Screen Control System
- 150mm Thickness Thermal Insulation Layer
- 9 Pieces Air Distribution Fan to Improve Freezing Efficiency
- Multi-point Atomization Evaporation System
5. Product qualifications:
- 27 Years of experiences
- CE Certificates
- ISO 9001 Certificates
- Hot Selling to Malaysia, Thailand, USA, Canada etc.
6. Delivery
We have rich professional loading and fastening experience of liquid nitrogen blast freezer for various kinds of oversea delivery.
7. FAQ of the liquid nitrogen quick freeze machine:

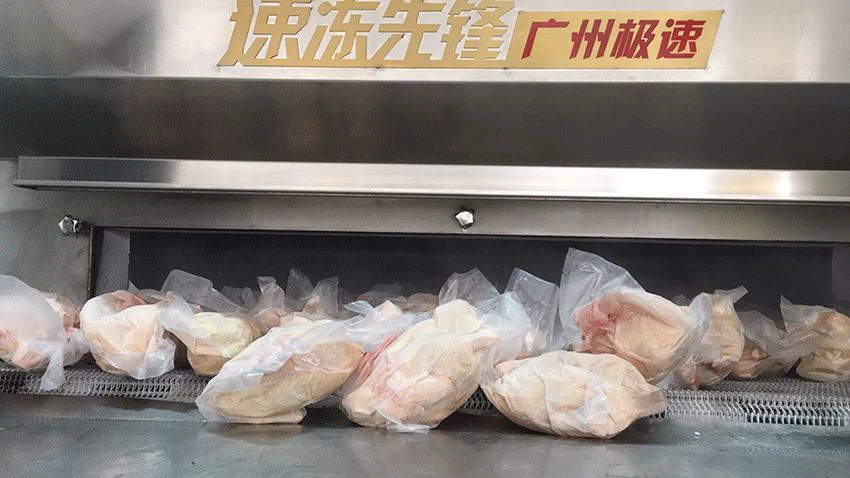

- How does liquid nitrogen blast freezer for chicken work?
When liquid nitrogen (LN2) vaporizes or gasifies, it absorbs the heat of the chicken efficiently and instantly. The vaporizing-spraying system pushes the vaporized nitrogen all around the goods directly with a high velocity, to reduce the temperature of products as quickly as possible.
Liquid nitrogen instant quick freezer is a kind of blast or shock freezers that uses liquid nitrogen (LN2) as the cryogen to freeze large quantities of goods very quickly.
The gasification process itself absorbs heat instantly and efficiently, no need extra power.
