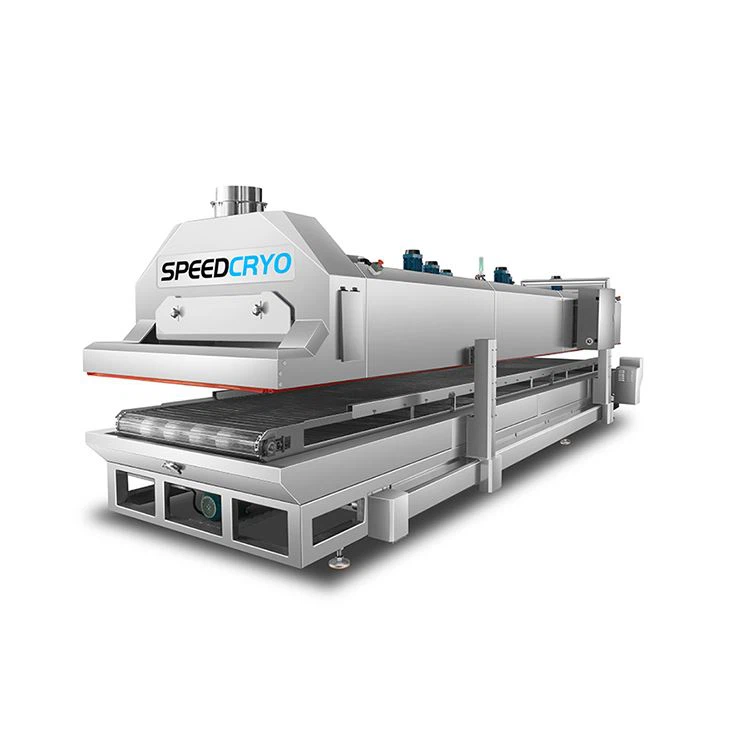

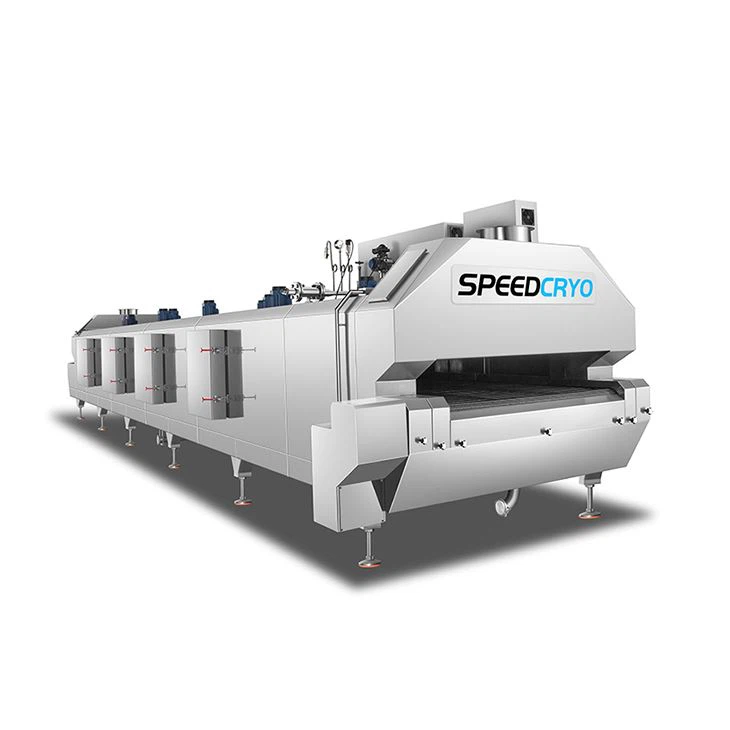

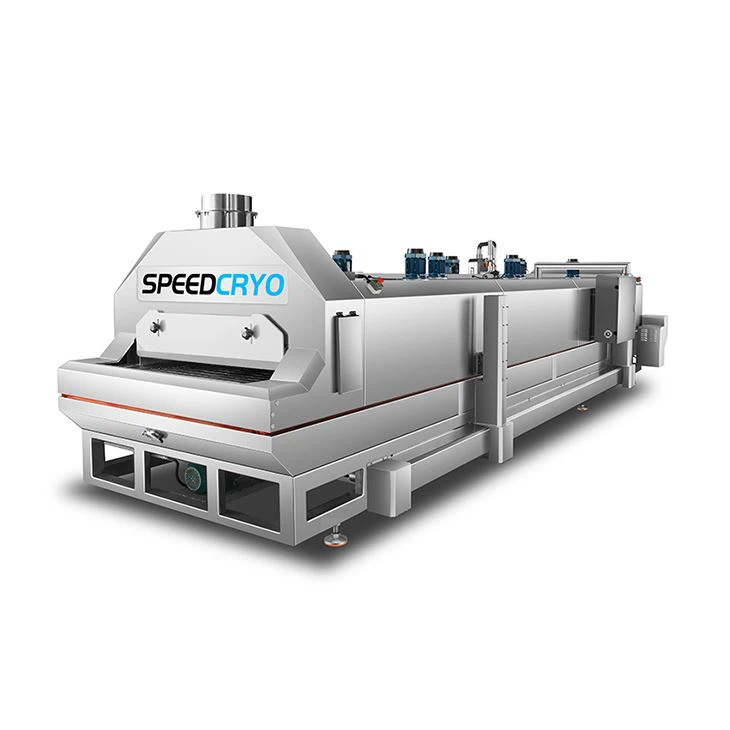

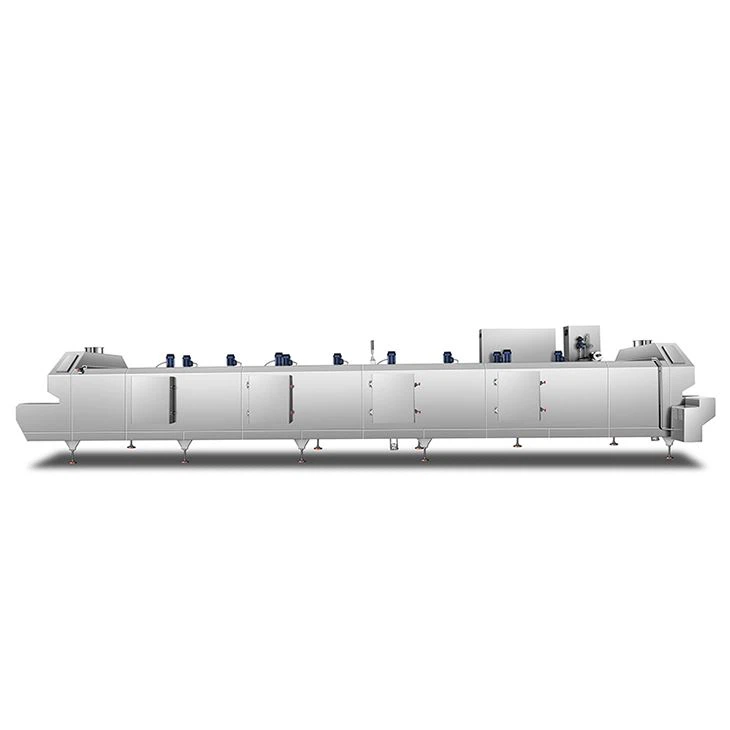

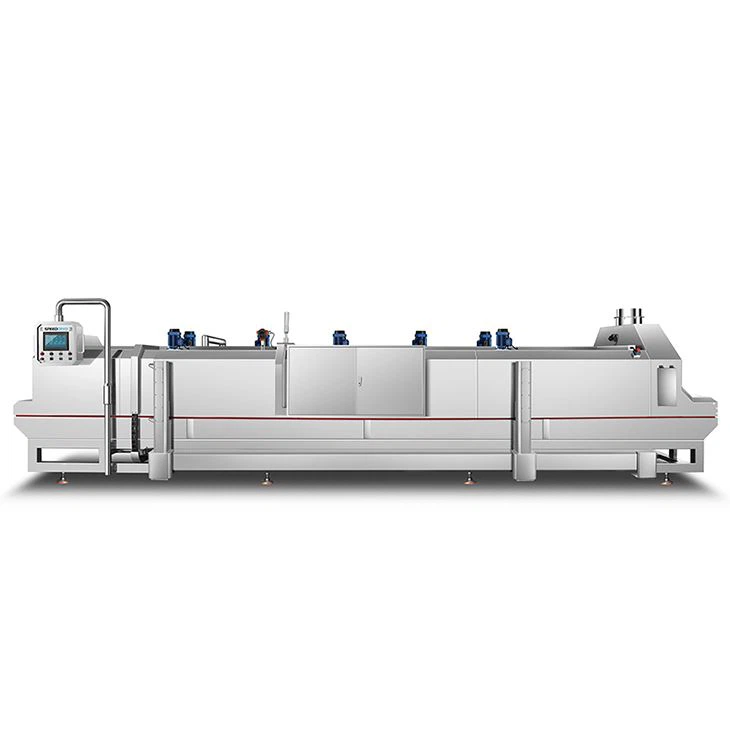

1. Product Introduction
Our Liquid nitrogen iqf quick freezing tunnel is controlled by microcomputer, which can monitor the whole running status of the blasting tunnel machine, meanwhile the machine equips the PLC screen to show all the setting parameters very simple and clear, also includes alarm system for better control of users.
We produce various capacity of liquid nitrogen iqf tunnel equipment from 200kgs/hour to 1500kgs/hour. It only takes 5~20 minutes for general food freezing, with very few power consumptions than traditional freezer.
2. Product Parameter
| Model: | JSSD-0912 Liquid Nitrogen IQF Quick Freezing Tunnel | ||
|---|---|---|---|
| Overall Size: | 9140*2150*1900(mm) | Belt Size: | 9000*1200(mm) |
| Entrance Length: | 960(mm) | Exit Length: | 500(mm) |
| Inside Height: | 50 ~150mm Adjustable | Freezing Capacity | 700 ~ 1000kgs/h |
| Weight: | About 4600 kgs | Voltage: | 380V |
| Material: | Stainless Steel 304, rustless | Power: | 11000W |
3. Products feature and application:
Liquid nitrogen fast freezing technology which has broken the limit working temperature from traditional freezer -80℃, the working temperature varies from 0 ~ -196℃, and user can adjust the temperature of iqf quick freezing tunnel according to their needs within this range.
Liquid nitrogen blasting tunnel with stable capacity and PLC program control, only need to setting the freezing time and temperature, other procedures will be automatically run and finished under PLC control, no need for special human monitoring.
4. Details Information:
- Whole Body SUS Stainless Steel 304
- High Quality and Durable Sealing Strip
- Excellent Heat Insulation Performance
- Freezing Capacity Customized
- Effective Exhaust Fan
- Reasonable Circulation Fan Designed Saving Energy
5. Product qualifications:
- CE Certificates
- ISO 9001 Certificates
- Adopts Famous Brand Component
- 100% Quality Control in Production and Inspection
6. Factory Details
- Established: 1993
- Annual Turnover: About USD 14 Million
- Main Products: liquid nitrogen iqf tunnel equipment and cabinet freezer
- Main Markets: Asia, USA, Canada, Australia, Europe, South America
- Max Production Capacity: 100pcs / Month
- Production Area: 8000 m²
- Admin Area: 1200 m²
7. FAQ of the liquid nitrogen quick freeze machine:
What if the liquid nitrogen iqf tunnel equipment fails?
Generally speaking, the failure of our iqf quick freezing tunnel equipment will not affect the client's use. Our operation manual has solutions for simple failures.
For other failures that are not listed in the operation manual, please contact your sales representative immediately. We will solve the problem by telephone, video call, and maintenance guidance documents within 24 hours. We can also appoint engineers to repair the blasting tunnel equipment at the user's local.
